Most all-in-one remote weather stations claim to be wireless
but
actually include a wire that connects to telemetry in a
bulky
enclosure. Add to that a big solar panel and a giant battery,
and
things start to get costly. We think getting your data shouldn't
be
complicated-or costly. And we think wireless should actually
be
wireless. That's why we created the ATMOS 41W.
Meet the world's simplest wireless weather station

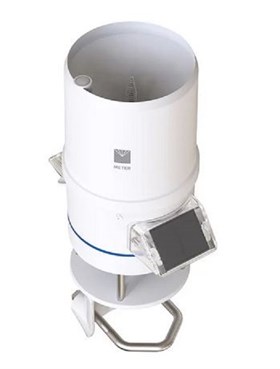

The ATMOS 41W all-in-one remote weather station is one of the
world's
few truly wireless weather stations, and it's the most
affordable
research-grade station in its class. It's robust, reliable, and
simple
to use. All of the telemetry is enclosed with an integrated cell
module.
But that's not even the best part. There is nothing on the market
that
is easier to install. Put it in a backpack, take it to your site,
secure
it to a post pointing North, and walk away. It's that easy to
start
broadcasting real-time data directly to the cloud.
More accurate than ever
he ATMOS 41W remote weather station measures 10 environmental
variables,
including solar radiation, precipitation, air temperature (min,
max,
average), barometric pressure, vapor pressure, relative humidity,
wind
speed, wind direction, maximum wind gust, and tilt. It takes
our
ultra-reliable ATMOS technology to the next level with a dual
rain
measurement for higher accuracy and extended range, making it one
of the
most robust rain gauges on the market. It combines a drop counter
and a
tipping spoon to ensure accurate measurements, and it's the only
rain
gauge available that can measure electrical conductivity. Now you
can
tell if you're measuring rainwater, irrigation water, or if the
funnel
is plugged with bird droppings. Not only that, we've improved the
solar
radiation, water vapor, air temperature, and wind
measurement
capabilities to be more compliant with various
meteorological
organization observation standards.
| Specifications |
| Upload frequency |
Hourly upload |
| Measurement Interval |
5 min to 12 h (average or accumulation of more frequent
sensor
readings) (Section 2.2.2 of manual)
|
| Solar Radiation |
Range:* 0-1,500 W/m^2
Resolution:* 0.1 W/m^2
Accuracy: ±5% of measurement typical of measurement typical
|
| Relative humidity |
Range: 0-100% RH (0.00-1.00)
*Resolution: 0.1% RH |
| Air temperature |
Range: -63 to 60 °C
Resolution:* 0.1 °C
Sensor Accuracy:* ±0.2 °C @ 25 °C
Measurement Accuracy:* ±0.6 °C from -20 to 50 °C |
| Barometric pressure |
Range: 1-120 kPa
Resolution: 0.01 kPa
Accuracy: ±0.05 kPa @ 25 °C
±0.1 kPa from -10 to 50 °C
±0.5 kPa below -10 °C and above 60 °C
|
| Horizontal wind speed |
Range: 0-30 m/s
Resolution: 0.01 m/s
Accuracy: The greater of 0.3 m/s or 3% of measurement
|
| Wind gust |
Range: 0-30 m/s
Resolution: 0.01 m/s
Accuracy: The greater of 0.3 m/s or 3% of measurement
|
| Wind direction |
Range: 0°-359.9°
Resolution: 0.1°
Accuracy: ±5°
|
| Tilt |
Range: 0° to 180°
Resolution: 0.1°
Accuracy: ±1°
|
| Precipitation |
Range: 0-2000 mm/h
Resolution: 0.017 mm
Accuracy: ±5% of measurement from 0 to 1000 mm/h |
| Precipitation - Electrical Conductivity |
Range: 0-3 mS/cm
Resolution: 0.001 mS/cm
Accuracy: The greater of 0.005 mS/cm or 15% of measurement
|
| Dimensions |
Width:16.5 cm (6.5 in)
Height: 31.8 cm (12.5 in)
|
| Battery Life |
Alkaline: 7 months typical for hourly uploads or 4 months
with
15-min data upgrade.
NiMH: 3+ years with an unobstructed view of the sun.
Charging through solar energy harvesting.
|
| Operating Temperature Range |
Minimum: -40 °C
Maximum: 60 °C
NOTE: Barometric pressure and relative humidity sensors operate
accurately at a minimum of -40 °C. Alkaline batteries
should be used if temperatures below -40 C are expected. |
Warranty
|
One year, parts and labour |
