ATMOS 22 Sonic Anemometer

Measuring into stiff headwinds

When it comes to measuring wind, trade-offs have always been involved. Cup anemometers can't measure both wind speed and wind direction (or low wind speeds, for that matter). They're also prone to malfunction since they all contain moving parts. Meanwhile, sonic anemometers have always been too costly. Until now.

The best of both worlds

The wind-tunnel-tested ATMOS 22 ultrasonic anemometer delivers the best of both worlds. It's accurate at any wind speed because there aren't any moving parts that cause friction or fail. And it's inexpensive, especially when you consider the low-energy design. Accuracy. Dependability. Affordability. You get all three with the ATMOS 22.

Accuracy that will blow you away

If you want accurate wind profiling, a sonic anemometer is the obvious choice. Designed with canopies in mind, the ATMOS 22 registers even the lowest thresholds of wind speed (0 m/s) with the added ability to detect fine-scale variations within 0.01 m/s resolution. We even installed spikes on flat surfaces to dissipate raindrop energy so transducer signals don't get obstructed.

Contrast the ATMOS 22's advanced technology to a cup or propeller wind anemometer. Neither will spin if wind speed is too low. Cup anemometers also don't indicate wind direction, unless you combine them with a wind vane. And both are prone to additional inaccuracies due to worn out moving parts. But with the ATMOS 22, you can accurately measure wind speed anywhere, every time, with total confidence.

Wind measurement is now a breeze

The ATMOS 22 was designed without moving parts, meaning there's never any mechanical wear. No oiling or replacing bearings. And no recalibration required. Just reliability you can continue to count on.

Not only does its ultra-low power consumption make it ideal for long-term, remote installations, but its compact size makes it small enough to deploy inside canopies.

A low-cost sonic anemometer. Yes, you heard right.

The ATMOS 22 is not only far more affordable than other sonic anemometers but also uses 100 to 1,000 times less power. Running on less than 100 uA, the ATMOS 22 frees you to make wind measurements in multiple locations without having to constantly change batteries.

Sounds like a smarter way to measure wind. Because it is.

The precise accuracy, yet low-maintenance of sonic measurement. The low-cost of a regular anemometer, plus even lower power consumption. The ATMOS 22 was engineered to offer a wide range of advantages across the widest range of wind speed, all for an affordable price.

Horizontal wind speed: Range: 0-30 m/s
Resolution: 0.01 m/s
Accuracy: the greater of 0.3 m/s or 3% of measurement
Wind gust: Range: 0-30 m/s
Resolution: 0.01 m/s
Accuracy: the greater of 0.3 m/s or 3% of measurement
Wind direction: Range: 0°-359°
Resolution: 1°
Accuracy: ±5°
Compass heading: Range: 0°-359°
Resolution: 1°
Tilt: Range: 0°-180°
Resolution: 0.1°
Accuracy: ±1°
Dimensions: 10 cm diameter × 16 cm height
Operating temperature range: Minimum -40 °C
Maximum 50 °C
Current drain (during measurement): Minimum 0.050 mA
Typical 0.125 mA
Maximum 0.500 mA
Current drain (while asleep): Minimum 0.050 mA
Typical 0.125 mA
Maximum 0.150 mA
Measurement duration: Typical 110 ms
Maximum 3,000 ms
Compliance: Manufactured under ISO 9001:2015
EM ISO/IEC 17050:2010 (CE Mark)
Connector types: 3.5 mm (stereo) plug or stripped & tinned lead wires (Pigtail)
Cable Length: 5 m, custom cable lengths available upon request

We periodically send an email newsletter containing updates, new product releases, training and advice. If you would like to receive these please subscribe below.


Labcell Limited exclusively supply and support METER products in the UK & Ireland.

Non UK/Ireland Customers, please contact METER Environment at:www.metergroup.com/environment/

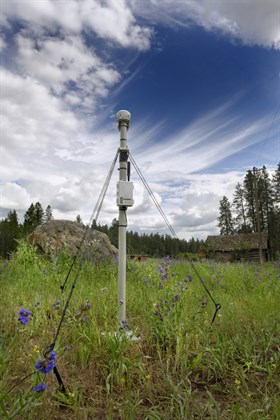

DS-2 Close

ATMOS-22 Close

Collect Data and Monitor Remotely

Monitor wind speed and direction from your office, phone, or any internet-connected device by connecting the ATMOS 22 sonic anemometer to a ZL6 data logger. ZL6 setup allows you to get near-real time information, check sensor and system function and download data from sites that are difficult to access.

ATMOS-22 Manual
Size: 489.2 KB (500,978 bytes)

ATMOS-22 Quick-start Guide
Size: 958.0 KB (980,958 bytes)

ATMOS-22 Integrators Guide
Size: 360.9 KB (369,579 bytes)

Anemometer Mast
Size: 153.1 KB (156,803 bytes)

Quotation Request

Email us to request a quotation for the ATMOS 22 Sonic Anemometer
