Environmental

SATURO Dual-head Infiltrometer

Get more out of every field visit

Saturated hydraulic conductivity is a pain to measure in the field. And the field measurement is only the beginning. When you get back to the office, you need to convert the raw data into hydraulic conductivity and infiltration rates.

We think you should spend less time on complex measurement processes and more time being productive. That's why we automated almost everything in the new SATURO.

Set it up, and leave

The SATURO Infiltrometer does almost everything for you. It's fully automated and doesn't require post-processing of data. Install the ring, connect the hoses, and push "start".  It's that simple.

The infiltrometer automatically measures infiltration rates, and the control unit calculates saturated hydraulic conductivity (Kfs) on the fly. That means if you need a value right away, it's there. If you want to dig deeper, you can always download the raw data.

One person can do everything

Unlike double ring systems, the SATURO is designed for one person to carry and set up. And you can run multiple instruments simultaneously, allowing you to maximize the efficiency of your time in the field.

Eliminate guessing

Water flows through soil in three dimensions. In the early days, it was difficult to solve three-dimensional equations. Infiltrometers were created to try and force water to flow in one dimension and required the use of estimated parameters to get reasonable hydraulic conductivity values.

Thanks to some mathematical magic, single ring measurements are now possible, making the whole process simpler and more efficient. The best part is, you don't have to rely on any dubious assumptions.

A simple, precise solution

The SATURO combines automation and simplified data analysis together in one system. It even computes infiltration rates and saturated hydraulic conductivity on the fly. The SATURO makes life a little easier for those who need a faster, more accurate way to measure Kfs in the field.

Specifications
Infiltration Rate Range: 0.0038 cm/hr to 115 cm/hr
Infiltration Rate Resolution: 0.0038 cm/hr
Infiltration Rate Accuracy: ±5 % of reading
Water Level: Maintained at 5 cm
Pressure Head Ranges: 0 to 40 cm
Operating Temperature: 0 to 50 °C
Charging Adapter: 18 V 2.2 Amps; Range 18 to 24 V DC Output: USB

We periodically send an email newsletter containing updates, new product releases, training and advice. If you would like to receive these please subscribe below.

Join

Labcell Limited exclusively supply and support METER products in the UK & Ireland.

Non UK/Ireland Customers, please contact METER Environment at:www.metergroup.com/environment/

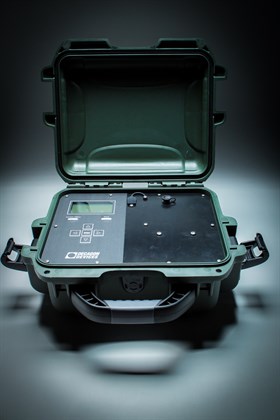

DHI Case

Dual Head Infiltrometer

SATURO Manual
Size: 1.3 MB (1,401,103 bytes)

SATURO Quick-start Guide
Size: 461.0 KB (472,111 bytes)

METER Soil Lab
Size: 1.3 MB (1,314,079 bytes)

Quotation Request

Email us to request a quotation for the SATURO Dual-head Infiltrometer
