SRS - Spectral Reflectance Sensor

Low Cost, Weatherproof Radiometer

The SRS is a matchbox-sized, multiband radiometer that can be mounted on a fence post, tripod, or meteorological tower. It's inexpensive enough to deploy multiple sensors simultaneously. And it's rugged enough to leave in the field for an entire growing season, or longer.

Deploy for Months or Even Years

Most spectrometers are delicate and expensive, making long-term field deployment risky. The SRS is built for long-term exposure to the elements. Key design features:

  • encased in durable Geloy housing
  • epoxy-filled, watertight, and weatherproof
  • fully sealed optics

These materials and methods have been tested over months and years on other buried and above ground sensors. Combined, these features help minimize drift in calibration over time.

Field Ready and Radiometrically Calibrated

Each sensor is radiometrically calibrated to a NIST-traceable standard. Readings are output in units of radiant flux density. Calibration information is stored on board the sensor so you never have to worry about keeping track of calibration coefficients.

Continuously Monitor NDVI, PRI at the Plot Scale

NDVI and PRI are calculated from measurements of of electromagnetic radiation reflected from canopy surfaces. They are correlated with canopy variables such as:

  • light use efficiency (LUE)
  • biomass and crop yield
  • crop and forest phenology
  • canopy growth
  • photosynthetic performance/CO2 Uptake
SRS sensors measure incident or reflected radiation in two bands:
  • Normalized Difference Vegetation Index (NDVI) bands are centered at 630 nm and 800 nm with 50 nm and 40 nm full width half maximum (FWHM), respectively.
  • Photochemical Reflectance Index (PRI) bands are centered at 532 nm and 570 nm with 10 nm FWHM.

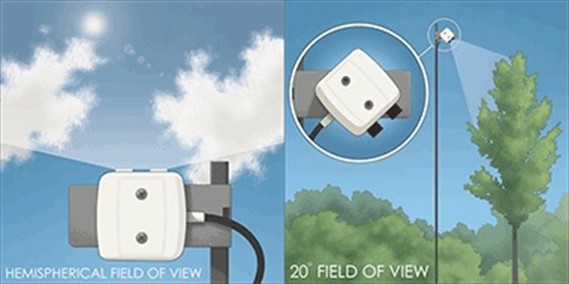

Hemispherical or Directional Field of View

SRS View

NDVI and PRI are calculated as the ratio between reflected and incident radiation, measured using downlooking and uplooking sensors, respectively. Depending on ambient sky conditions, one uplooking sensor may be able to provide reference values for multiple downlooking sensors.

Uplooking SRS sensors have a hemispherical view with Teflon diffusers providing a cosine corrected response. They should be mounted above the canopy with an unobstructed view of the sky.

Downlooking sensors are equipped with field stops that restrict the field of view of the SRS to 20°. The field stops allow you to aim the sensor at a specific target and exclude non-canopy elements, such as a tower infrastructure, from the field of view. The sensor can be mounted to monitor single plants, row crops, plots, or forest stands. Mounting height will determine the measurement area.

Sensors are typically mounted above the canopy using a pole, post, tripod, or tower depending on the height of the canopy. Small size, low weight, and durable construction make the SRS suitable for attaching to a mobile sampling platform.

Low Cost for Maximum Spatial Coverage

By focusing on just two bands, it's possible to make an accurate multiband radiometer for a fraction of what a full-feature spectroradiometer costs. Use the SRS-NDVI and SRS-PRI sensors to maximize spatial coverage and explore spatial and temporal variability in canopy structure and function.

Data Logging and Software

The SRS is an SDI-12 Digital sensor.

When used with Decagon's Em50 series data loggers, the SRS plugs in via stereo connector. Setup is straightforward: select the sensor type from a drop-down menu, set the measurement interval and start logging data. No programming necessary.

The SRS provides readout of the individual bands in W m-2 nm-1 or W m-2 nm-1 sr-1, depending on sensor type. Decagon's DataTrac 3 database and graphing software can manage your data set and will calculate NDVI or PRI automatically.

The SRS sensor is also compatible with Campbell Scientific and other SDI-12 capable data loggers.

Collect Data and Monitor Remotely

When used with Decagon's Em50G data loggers, you can monitor remote sites from your office, phone, or any internet-connected device. Observe field conditions, check sensor and system function, or download data from sites that are difficult to access.

Specifications
NDVI wavebands: 630±5 and 800±5 nm peak wavelengths, with 50 nm and 40 nm full width half maximum (FWHM) band widths
PRI wavebands: 531±3 and 570±3 nm peak wavelengths, with 10 nm full width half maximum (FWHM) band widths
Foreoptics:
(1) Cosine correcting Teflon diffuser, hemispherical field of view
(2) Field stop, 20° field of view
Calibration NIST traceable calibration to known spectral radiance (W m-2 nm-1) or irradiance (W m-2 nm-1 sr-1)
Accuracy: 10% or better for spectral irradiance and radiance values
Measurement Time: < 300 ms
Dimensions: 43 x 40 x 27 mm
Power requirements: 3.6 to 15 VDC, 4 mA (reading, 300 ms), 30µA (quiescent)
Operating Temperature Range -40 to 50°C
Cable Length: 5m standard, custom cable lengths available upon
request
Connector types: 3.5 mm (stereo) plug or stripped & tinned
lead wires (Pigtail)
Communication SDI-12 digital sensor
Data Logger Compatibilty Em50 Series, Campbell Scientific

We periodically send an email newsletter containing updates, new product releases, training and advice. If you would like to receive these please subscribe below.

Join

Non UK/Ireland Customers

Non UK/Ireland Customers, please contact Decagon Devices at: www.decagon.com

SRS

Rugged Radiometer Measures NDVI or PRI

  • Measure NDVI and PRI vegetation indices at the plot or plant stand scale

  • Non-destructive sampling of canopy greenup, senescence and plant stress

  • Collect vegetation index data unattended for days, months or years

  • Use low cost, research grade sensors to maximize spatial coverage

  • Improve crop growth models with spatially explicit data

  • Monitor data remotely from office or phone
