Low Cost Analogue Mini-logger

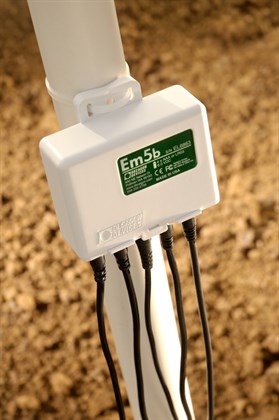

The Em5b is a low cost, limited use five-channel mini-logger. It
powers and reads the EC-5 and 10HS soil moisture sensors, the rain
gauges, and the ECT temperature sensor.
Designed for use over the growing season, the Em5b runs for 5-6
months on 4 AAA-size alkaline batteries and has 46K of Flash Data
memory (138 days at 1 scan/hour).
The Em5b comes with ECH2O Utility software for
setting up and downloading data.
Advantages:
- Cost. The Em5b allows you to add inexpensive peripheral sites
to a study.
- Perfect for a season's worth of basic soil moisture data.
Limitations:
- Limited weatherproofing. Needs to be protected from the
elements.
- Not designed to be accessed on a weekly basis.
(Port 1 must be unplugged before dowloading data.)
- Only reads analog sensors.
(Decagon's analog sensors include the EC-5 and 10HS soil
moisture sensors, the low and high resolution rain gauges,
and the ECT humidity & temperature sensor.)
| Feature |
Specification |
| Measurement Type |
Heat Dissipation vs Time |
| Measurement range Thermal Conductivity (K) |
0.02 to 2.0 Wm-1/°C-1 |
| Measurement Range Thermal Resistivity (R) |
0.5 to 50 m/Deg CW-1 |
| Accuracy K |
5% |
| Accuracy R |
5% |
| Repeatability all Ranges |
4% |
| Operating Environment |
-10°C to 60°C |
| Measurement Time |
90 Seconds |
| Power Supply |
3.6 V Lithium Battery |
| Needle |
60 mm Long x 0.9 mm Dia. |
| Cable Length |
72 cm |
| Weight |
115g |
