The ECM LambdaCAN is a powerful, wideband Lambda (and
AFR/%O2) measurement module with a CAN interface.
Parameters measured
- Lambda
- AFR
- %O2
- Equivalence Ratio (Phi)
- Exhaust Pressure*
| Specifications |
| LambdaCAN |
Parameter Range |
Accuracy |
| Lambda Range |
0.4 to 25 |
0.005 (at Lambda =1) |
| AFR Range |
6 to 364 |
+/- 0.1 AFR (at 14.6 AFR) |
| %O2 Range |
0 to 25% |
+/- 0.2 (at 0 to 2% O2) |
| *Pressure Range |
0 517 kPa |
+/- 5.2 kPa |
Features
- Output direct to CAN Programmable Communication
- Response time of less than 150 ms
- Programmable Fuel Type (as defined by H:C. O:C, N:C Ratio)
- Fast Response
- Can be field re-calibrated
- Environmentally Sealed

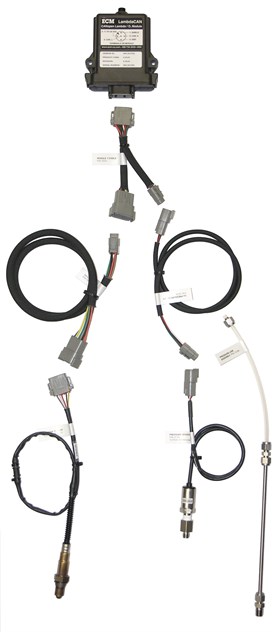

Supplied
- Sensor Control Module
- UEGO Sensor
- All required cabling
- Boss/Bung Set
- Operating Manual
- Options
- Display Head
* Pressure Compensation
